Customizable Keypad STS Prepaid Water Meter with 84 Flow Rate and 1km Measurement Range

Customizable Keypad Prepaid Water Meter

84 Flow Rate STS Water Meter

1km Measurement Range Smart Water Meter

Miejsce pochodzenia:

Hunan, Chiny

Nazwa handlowa:

Stron

Skontaktuj się z nami

Poproś o wycenę

Customizable Keypad STS Prepaid Water Meter with 84 Flow Rate and 1km Measurement Range

Szczegóły produktu

Klasa ochronna:

IP68

Natężenie przepływu:

Zakres pomiaru:

1 km

Rozmiar:

DN15mm~DN25mm (1/2''~1-1/2'')

Tworzywo:

Mosiężny korpus

Dokładność:

R100

Typ baterii:

Lit

Żywotność baterii:

6 lat

Maksymalne ciśnienie:

16Bar

Maksymalna temperatura:

50°C

Komunikacja:

LORA-RF lub Bluetooth 4.0

sterowanie zaworem:

Automatyczny

Zabezpieczenie przed manipulacją:

Ochrona pola magnetycznego

Taryfa krokowa:

Konfigurowalne

Zawór bezwrotny:

Dołączony

Podkreślić:

Customizable Keypad Prepaid Water Meter

84 Flow Rate STS Water Meter

1km Measurement Range Smart Water Meter

Warunki płatności i wysyłki

Minimalne zamówienie

100

Cena

$31-38

Produkty pokrewne

STS Smart Water Meter with 84 Flow Rate Mobile Payment Integration and LoRa-RF Communication

Najlepszą cenę

STS Standard Prepaid Water Meter with 2.5/4/6.3 m³/h Flow Rate 99999m³ Measurement Range and 2 Years Warranty

Najlepszą cenę

STS Integrated Keypad Split Smart Water Meter with 1km Measurement Range 84 Flow Rate and Free Vending Software

Najlepszą cenę

Customizable STS Prepaid Water Meter with 84 Flow Rate Mobile Payment Integration and LORA-RF Communication

Najlepszą cenę

Skontaktuj się z nami

86-0731-22421066

Skontaktuj się teraz

Opis produktu

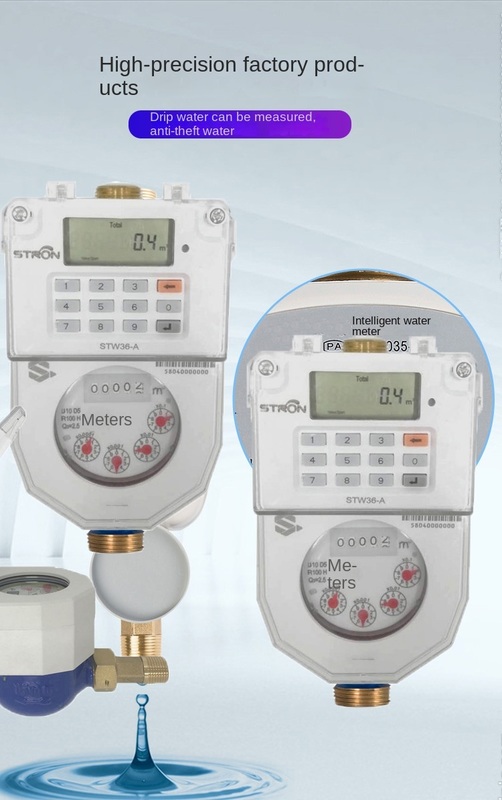

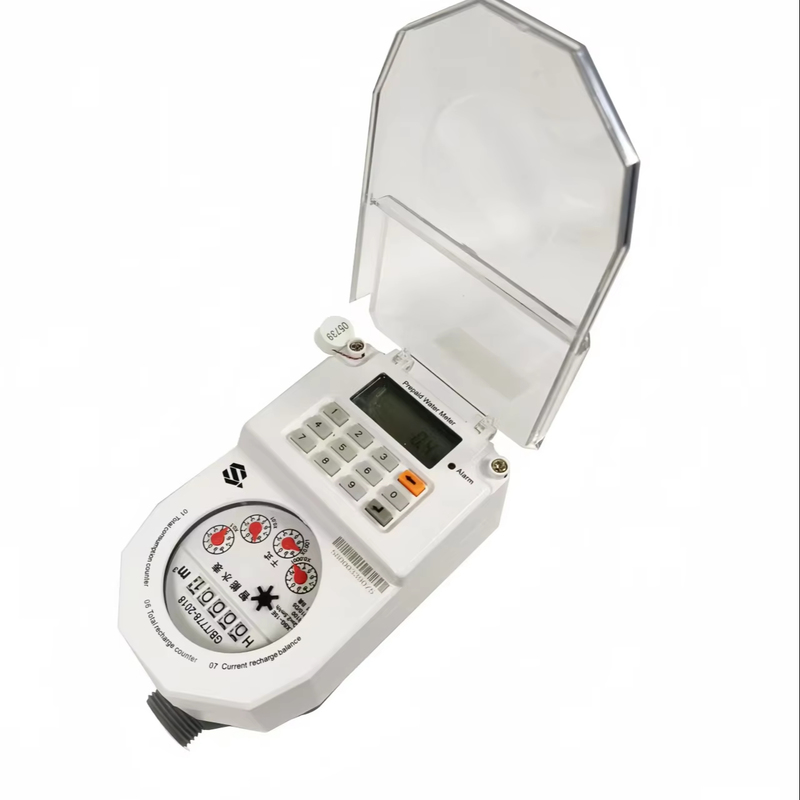

Customizable Integrated Smart STS 84 Brass Body Water Meter

IP68 Prepaid OEM Customizable Keypad with 2-Year Warranty

Low Price, High Quality

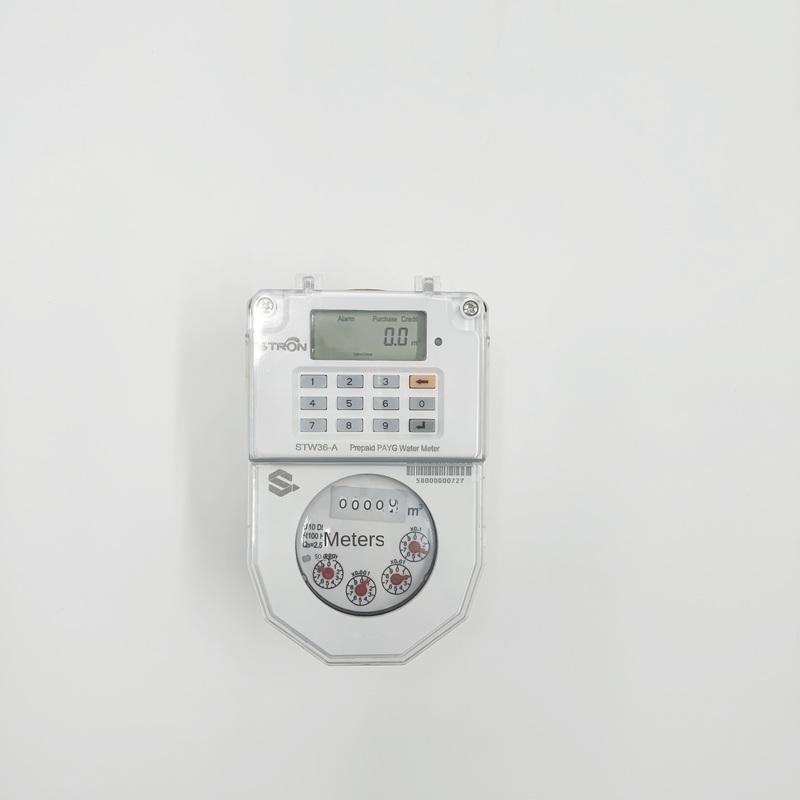

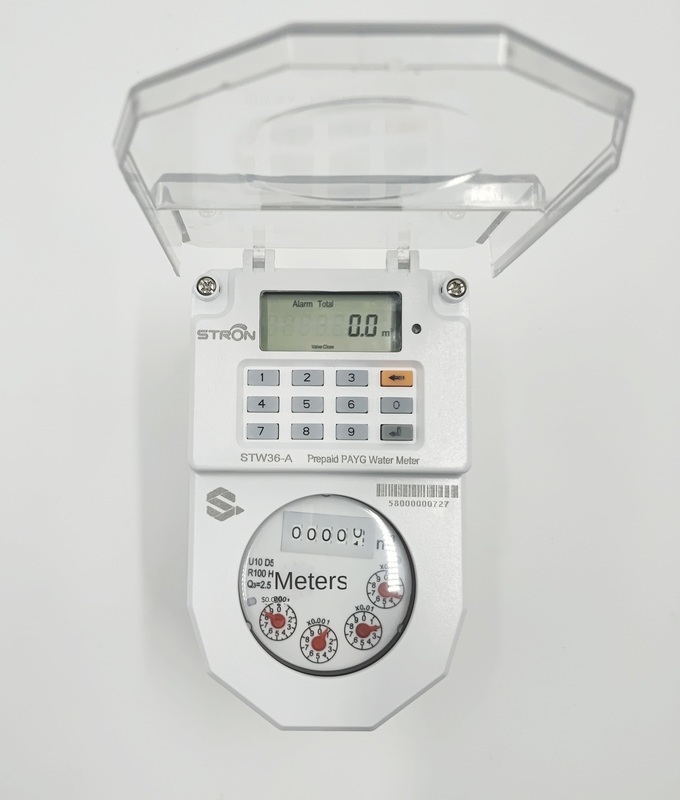

The STW36-A Prepaid water meter offers exceptional value for African markets, combining smart technology with competitive pricing. Reduced volumetric water meter technology costs and improved logistics through railway construction contribute to its affordability.

Precision Measurement

With accuracy reaching up to R160 (optional), the STW36-A excels in its core function. Special features for African environments include:

Anti-Tamper function that automatically closes valves upon detecting magnetic fields or cover openings
STS standard compliance
IP68 waterproof protection

Extended Battery Life

The STW36-A incorporates three power management strategies:

Lithium battery technology
Minimized energy consumption
Triple protection against moisture

Field tests demonstrate over 6 years of operation from the built-in lithium battery.

Integrated Vending Software

The STW36-A includes Stronpay water vending software (free) that integrates with mobile payment platforms like M-PESA, Alipay, MTN, and Airtel. Two recharge methods are available:

Traditional token purchase at water utilities
Mobile money payments through integrated apps

Token System Features

The vending system's token codes enable multiple functions:

Account recharge
Data management (clearing/restoring)
Maximum overdraft setting
User and role management

Stron Water Meter AMI Solution

Our LoRa-RF technology enables utilities to implement:

Collective meter reading
Remote monitoring
Autonomous recharge systems

Key Features

IP68 waterproof rating
8-year battery life
Automatic valve control
STS Standard compliance
Real-time clock
Customizable step pricing
Anti-tamper magnetic field protection
Optional LoRa-RF or Bluetooth 4.0 communication
Mobile payment integration

Technical Specifications

Metrological Parameters

Size	DN15mm 1/2"	DN20mm 3/4"	DN25mm 1"
Overload flow rate Q4	3.13	5	7.87
Permanent flow rate Q3	2.5	4	6.3
Transitional flow rate Q2	0.04	0.064	0.1
Minimum flow rate Q1	0.025	0.04	0.063
Ratio "R" Q3/Q1	100	100	100
Maximum working pressure	16bar	16bar	16bar
Maximum pressure loss	0.6bar	0.6bar	0.6bar
Maximum reading	99999	99999	99999
Max temperature	50°C	50°C	50°C
Max permissible error (MPE)	Q1≤Q≤Q2, MPE=±5% Q2≤Q≤Q4, MPE=±2%

Functional Specifications

Function	Details
Prepayment	STS Standard, recharge by input 20 digits TOKEN
Low credit alarm	Alarm value can be set by inputting corresponding TOKEN
Prepaid/post-paid switch	Meter can switch between prepaid and post-paid modes
Non-return valve	Prevents back-flow
Anti-tamper	Automatically closes valve after detecting magnetic field or cover opening
Step tariff	Customizable through token input
Overdraft collection	Non-revenue water can be collected daily or monthly
Communication	Optional AMI system through LoRa-RF or Bluetooth 4.0
Information inquiry	Users can check credit, purchases, and totals via short codes

Physical Dimensions

Size	DN15 1/2"	DN20 3/4"	DN25 1"
Length (mm)	165/190	190	225/260
Width (mm)	99	99	103
Height (mm)	104	106	114
Connecting thread	G3/4B	G1B	G1-1/4B

Frequently Asked Questions

Can I have a sample to test it?

Samples are available with a nominal fee to cover costs. For large orders, sample fees may be deducted from the purchase price.

When can I receive the goods?

Standard delivery takes 5-10 days. Custom orders require 15-30 days.

How many users of your product in the world?

Our primary markets are Africa and South Asia, with an estimated 500,000 users across these regions through both direct sales and OEM partnerships.
